Product overview

Fast, flexible and controlled spaces with Construction Site Containers.

Construction site containers bring management, meeting, rest, changing and technical support functions together in an organised field solution. The modular system can be arranged as a single-storey building or a multi-block campus, with additional units added as the project grows. Easy-clean surfaces, durable floor finishes and controlled service routes support intensive daily use. Team circulation, document storage, climate control and secure access are evaluated together so the completed workplace remains efficient from mobilisation to demobilisation.

3 model options

Choose the area and compare the detail.

These are concept options. Final dimensions and technical solutions are confirmed against site, regulations and engineering.

42 m² Construction Site Containers Model
42 m²

42 m² Construction Site Containers Model

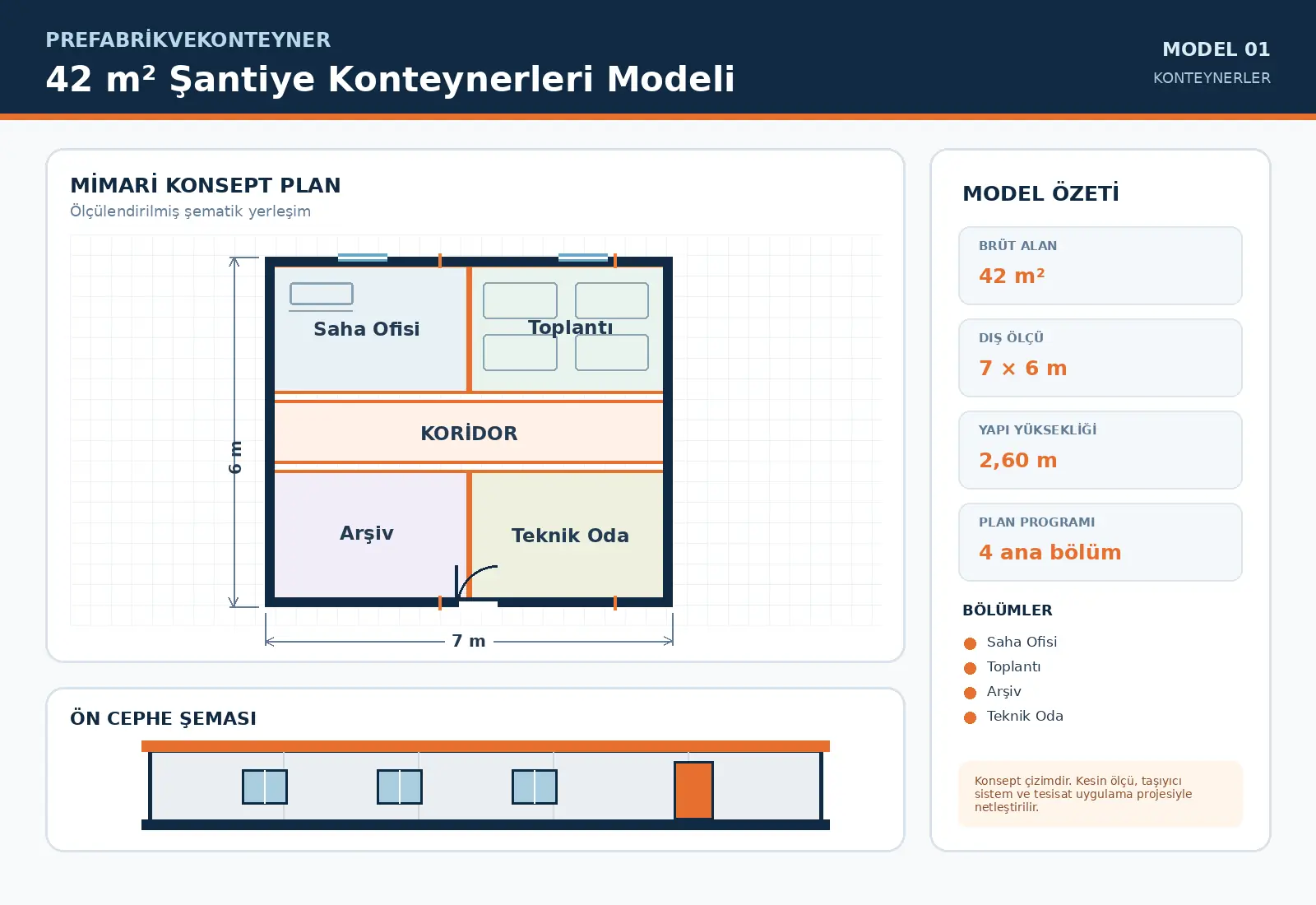

42 m² Construction Site Containers Model is configured for compact requirements with an approximate external footprint of 7 × 6 m. The schematic plan contains Site Office, Meeting Room, Archive, Technical Room. Door and window positions, service points and partitions can be revised around site conditions and user capacity before manufacture.

Get a Quote↗

Technical specifications

Model42 m² Construction Site Containers Model
Gross floor areaApproximately 42 m²
External dimensions7 × 6 m
Building height2.60 m
Clear internal heightApproximately 2.30–2.55 m, depending on roof and service design
Structural systemS235 grade steel main chassis and box-section upper frame, sized by structural calculation
Internal wall50 mm painted panel or plasterboard-lined light steel partition; moisture-resistant finish in wet areas
External wall50–80 mm insulated sandwich panel with painted galvanised steel faces; core selected for the climate
RoofGalvanised structure, vapour-control layer, 80–100 mm insulation and waterproof outer covering
FloorCement-based board over galvanised floor frame with heavy-duty commercial PVC finish
External door90 × 210 cm insulated galvanised steel entrance door; glazed or double-leaf options by model
Internal doorsLaminate, PVC or moisture-resistant compact doors selected for the use area
WindowsDouble-glazed PVC or thermally broken aluminium frames; opening sash and insect-screen options
ElectricalHalogen-free cabling, LED lighting, power/data points and provision for RCD-protected distribution board
PlumbingFresh/wastewater and hot-water provision in models with wet areas; optional in other layouts
Thermal and acoustic insulationSpecified by project according to climate zone, occupancy period, fire strategy and acoustic target
Plan scheduleSite Office, Meeting Room, Archive, Technical Room

Note: Technical values are a concept framework. The final building is engineered for the site, climate, seismic, fire and local requirements.

Additional model options

84 m² Construction Site Containers Model
84 m²

84 m² Construction Site Containers Model

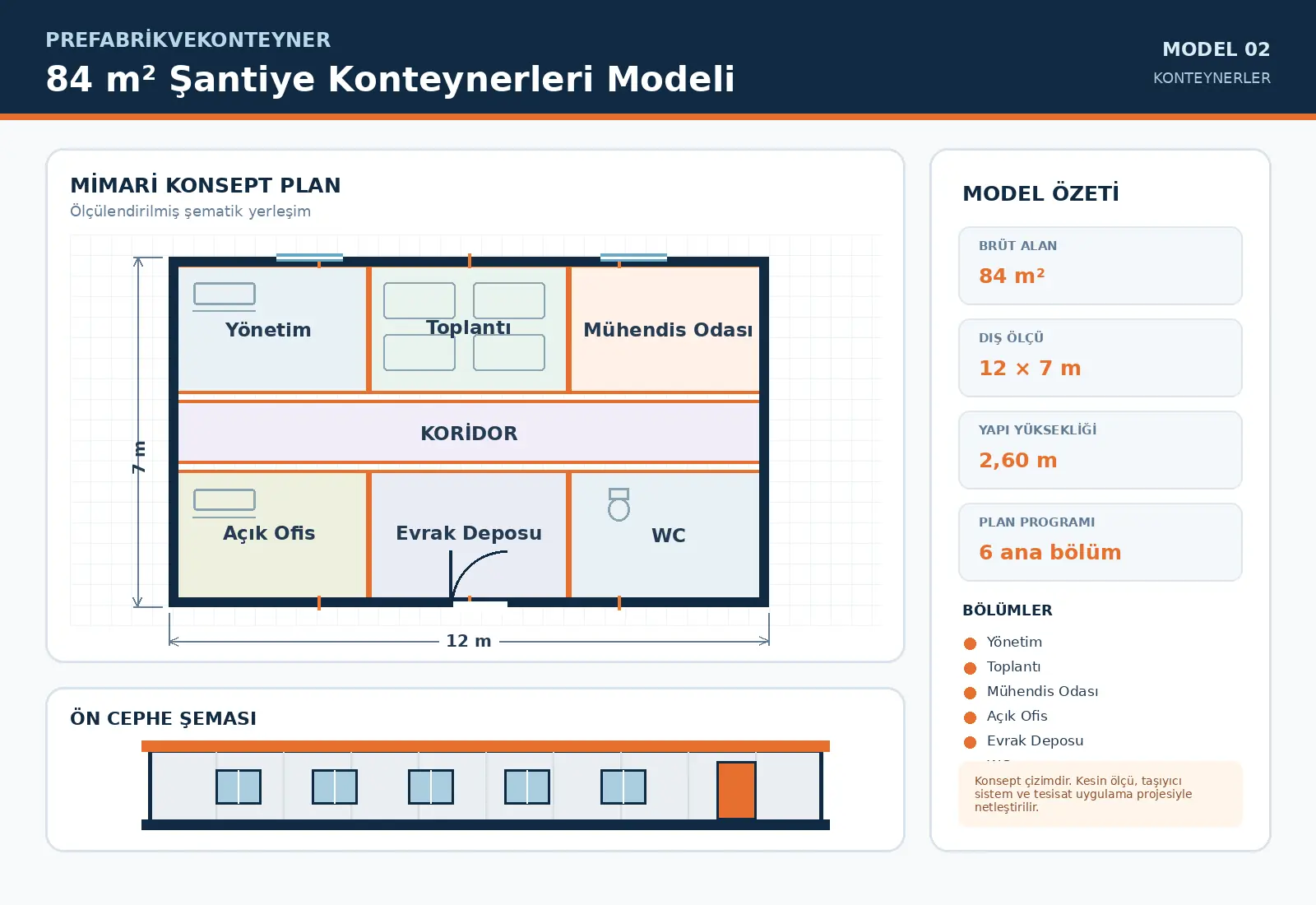

84 m² Construction Site Containers Model is configured for mid-scale requirements with an approximate external footprint of 12 × 7 m. The schematic plan contains Management, Meeting Room, Engineer Office, Open Office, Document Storage, WC. Door and window positions, service points and partitions can be revised around site conditions and user capacity before manufacture.

Get a Quote↗

Technical specifications

Model84 m² Construction Site Containers Model
Gross floor areaApproximately 84 m²
External dimensions12 × 7 m
Building height2.60 m
Clear internal heightApproximately 2.30–2.55 m, depending on roof and service design
Structural systemS235 grade steel main chassis and box-section upper frame, sized by structural calculation
Internal wall50 mm painted panel or plasterboard-lined light steel partition; moisture-resistant finish in wet areas
External wall50–80 mm insulated sandwich panel with painted galvanised steel faces; core selected for the climate
RoofGalvanised structure, vapour-control layer, 80–100 mm insulation and waterproof outer covering
FloorCement-based board over galvanised floor frame with heavy-duty commercial PVC finish
External door90 × 210 cm insulated galvanised steel entrance door; glazed or double-leaf options by model
Internal doorsLaminate, PVC or moisture-resistant compact doors selected for the use area
WindowsDouble-glazed PVC or thermally broken aluminium frames; opening sash and insect-screen options
ElectricalHalogen-free cabling, LED lighting, power/data points and provision for RCD-protected distribution board
PlumbingFresh/wastewater and hot-water provision in models with wet areas; optional in other layouts
Thermal and acoustic insulationSpecified by project according to climate zone, occupancy period, fire strategy and acoustic target
Plan scheduleManagement, Meeting Room, Engineer Office, Open Office, Document Storage, WC
126 m² Construction Site Containers Model
126 m²

126 m² Construction Site Containers Model

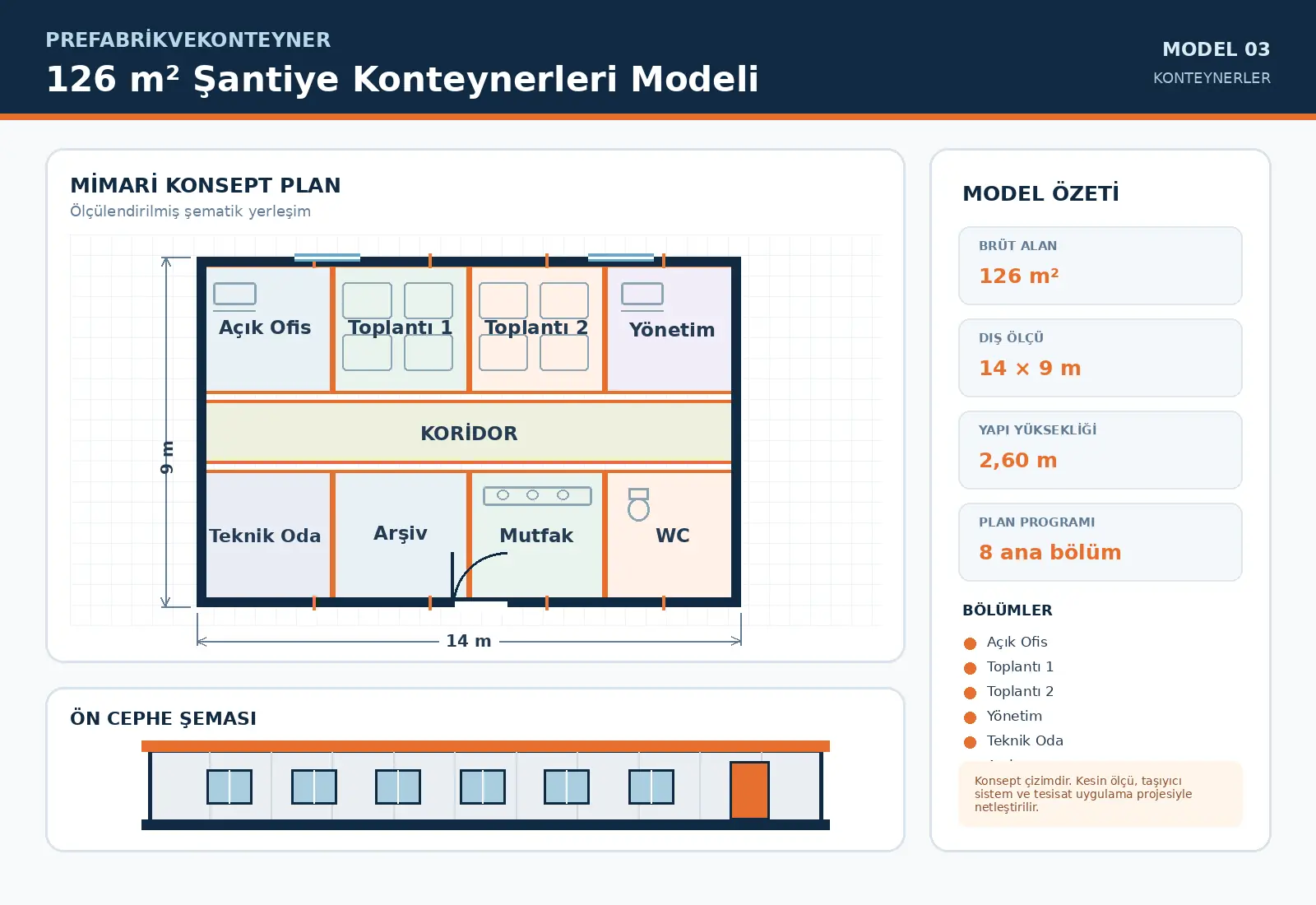

126 m² Construction Site Containers Model is configured for large-scale requirements with an approximate external footprint of 14 × 9 m. The schematic plan contains Open Office, Meeting Room 1, Meeting Room 2, Management, Technical Room, Archive, Kitchen, WC. Door and window positions, service points and partitions can be revised around site conditions and user capacity before manufacture.

Get a Quote↗

Technical specifications

Model126 m² Construction Site Containers Model
Gross floor areaApproximately 126 m²
External dimensions14 × 9 m
Building height2.60 m
Clear internal heightApproximately 2.30–2.55 m, depending on roof and service design
Structural systemS235 grade steel main chassis and box-section upper frame, sized by structural calculation
Internal wall50 mm painted panel or plasterboard-lined light steel partition; moisture-resistant finish in wet areas
External wall50–80 mm insulated sandwich panel with painted galvanised steel faces; core selected for the climate
RoofGalvanised structure, vapour-control layer, 80–100 mm insulation and waterproof outer covering
FloorCement-based board over galvanised floor frame with heavy-duty commercial PVC finish
External door90 × 210 cm insulated galvanised steel entrance door; glazed or double-leaf options by model
Internal doorsLaminate, PVC or moisture-resistant compact doors selected for the use area
WindowsDouble-glazed PVC or thermally broken aluminium frames; opening sash and insect-screen options
ElectricalHalogen-free cabling, LED lighting, power/data points and provision for RCD-protected distribution board
PlumbingFresh/wastewater and hot-water provision in models with wet areas; optional in other layouts
Thermal and acoustic insulationSpecified by project according to climate zone, occupancy period, fire strategy and acoustic target
Plan scheduleOpen Office, Meeting Room 1, Meeting Room 2, Management, Technical Room, Archive, Kitchen, WC
