Cabins

Toilet & Shower Cabin

Name: Toilet & Shower Cabin
Brand: Prefabrik Ev ve Konteyner

Product overview

Fast, flexible and controlled spaces with Toilet & Shower Cabin.

Toilet and shower cabins combine essential hygiene functions in a compact, movable structure. They can be arranged with different numbers of compartments for campsites, sports facilities, events, agricultural operations and small construction sites. Water-resistant linings, slip-resistant floors, ventilation and service access improve safety and maintainability. Fresh water, hot water and wastewater points can be grouped on one service side for fast connection and easier routine care.

3 model options

Choose the area and compare the detail.

These are concept options. Final dimensions and technical solutions are confirmed against site, regulations and engineering.

6 m²

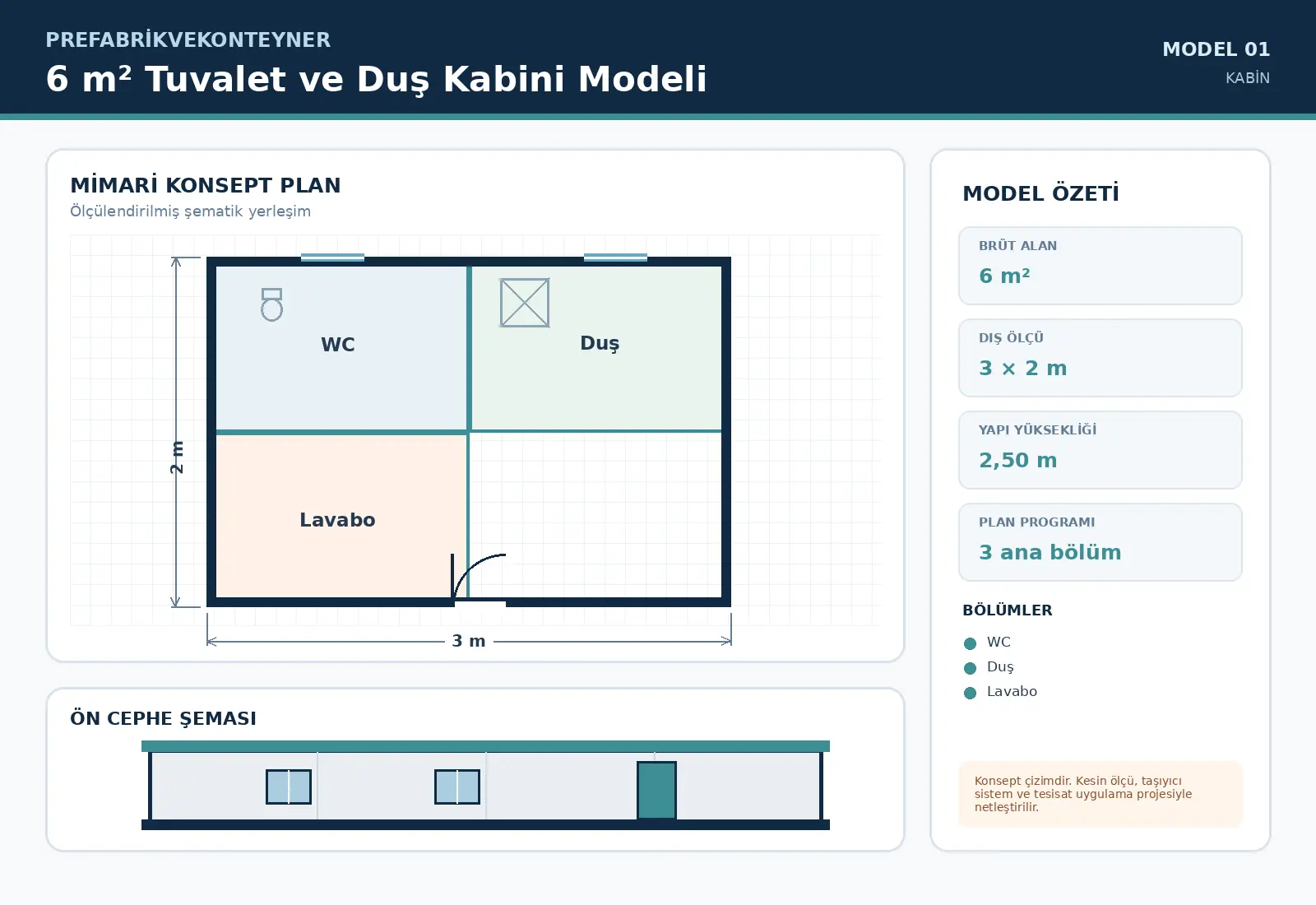

6 m² Toilet & Shower Cabin Model

6 m² Toilet & Shower Cabin Model is configured for compact requirements with an approximate external footprint of 3 × 2 m. The schematic plan contains WC, Shower, Washbasin. Door and window positions, service points and partitions can be revised around site conditions and user capacity before manufacture.

Get a Quote↗

Technical specifications

Model6 m² Toilet & Shower Cabin Model

Gross floor areaApproximately 6 m²

External dimensions3 × 2 m

Building height2.50 m

Clear internal heightApproximately 2.30–2.55 m, depending on roof and service design

Structural systemGalvanizli hafif çelik taban. dikme ve çatı karkası; proje yüklerine göre boyutlandırma

Internal wall50 mm painted panel or plasterboard-lined light steel partition; moisture-resistant finish in wet areas

External wall50–80 mm insulated sandwich panel with painted galvanised steel faces; core selected for the climate

RoofGalvanised structure, vapour-control layer, 80–100 mm insulation and waterproof outer covering

FloorSu yalıtımı üzerinde kaymaz ıslak hacim kaplaması; süzgeç yönünde kontrollü eğim

External doorNeme dayanıklı dış kapı ve kilitlenebilir bağımsız bölüm kapıları

Internal doorsLaminate, PVC or moisture-resistant compact doors selected for the use area

WindowsDouble-glazed PVC or thermally broken aluminium frames; opening sash and insect-screen options

ElectricalHalogen-free cabling, LED lighting, power/data points and provision for RCD-protected distribution board

PlumbingTemiz su. sıcak su. atık su. süzgeç. vana ve bakım erişimi için toplu servis hattı

Thermal and acoustic insulationSpecified by project according to climate zone, occupancy period, fire strategy and acoustic target

Plan scheduleWC, Shower, Washbasin

Note: Technical values are a concept framework. The final building is engineered for the site, climate, seismic, fire and local requirements.

Additional model options

12 m²

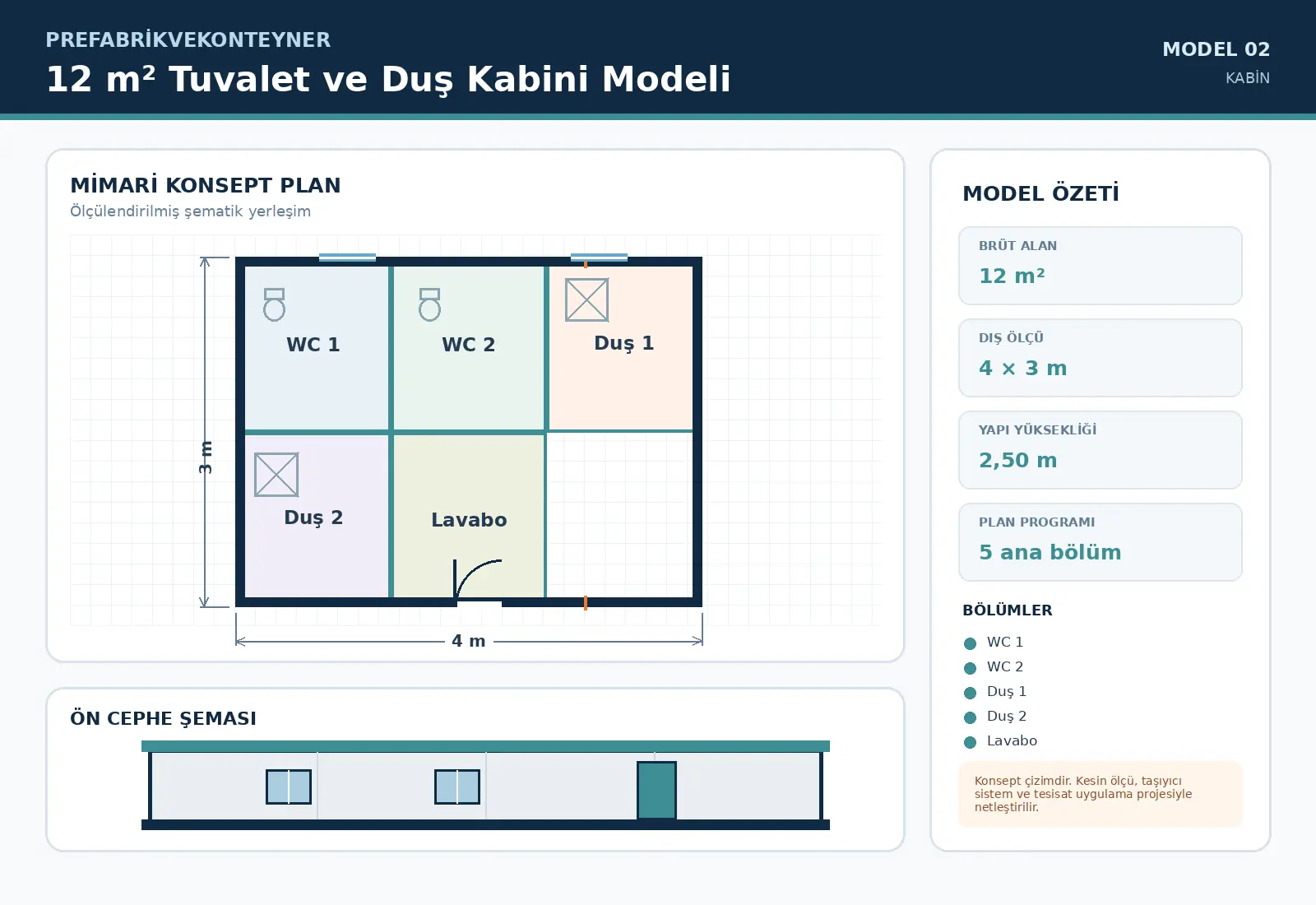

12 m² Toilet & Shower Cabin Model

12 m² Toilet & Shower Cabin Model is configured for mid-scale requirements with an approximate external footprint of 4 × 3 m. The schematic plan contains WC 1, WC 2, Duş 1, Duş 2, Washbasin. Door and window positions, service points and partitions can be revised around site conditions and user capacity before manufacture.

Get a Quote↗

Technical specifications

Model12 m² Toilet & Shower Cabin Model

Gross floor areaApproximately 12 m²

External dimensions4 × 3 m
